Verringerung T-Stück um 90°

Specifications

Download Catalog

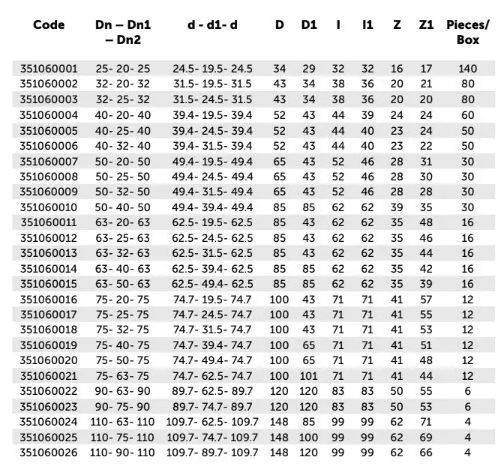

code	Dn-Dn1-Dn2	d-d1-d	D	D1	l	l1	z	z1	pieces\box
351060001	25-20-25	24.5- 19.5- 24.5	34	29	32	32	16	17	140
351060002	32-20-32	31.5- 19.5- 31.5	43	34	38	36	20	21	80
351060003	32-25-32	31.5- 24.5- 31.5	43	34	38	36	20	20	80
351060004	40-20-40	39.4- 19.5- 39.4	52	43	44	39	24	24	60
351060005	40-25-40	39.4- 24.5- 39.5	52	43	44	40	23	24	50
351060006	40-32-40	39.4- 31.5- 39.4	52	43	44	40	23	22	50
351060007	50-20-50	49.4- 19.5- 49.4	65	43	52	46	28	31	30
351060008	50-25-50	49.4- 24.5- 49.4	65	43	52	46	28	30	30
351060009	50-32-50	49.4- 31.5- 49.4	65	43	52	46	28	28	30
351060010	50-40-50	49.4- 39.4- 49.4	85	85	62	62	39	35	30
351060011	63-20-63	62.5- 19.5- 62.5	85	43	62	62	35	48	16
351060012	63-25-63	62.5- 24.5- 62.5	85	43	62	62	35	46	16
351060013	63-32-63	62.5- 31.5- 62.5	85	43	62	62	35	44	16
351060014	63-40-63	62.5- 39.4- 62.5	85	85	62	62	35	42	16
351060015	63-50-63	62.5- 49.4- 62.5	85	85	71	62	35	39	16
351060016	75-20-75	74.7- 19.5- 74.7	100	43	71	71	41	57	12
351060017	75-25-75	74.7- 24.5- 74.7	100	43	71	71	41	55	12
351060018	75-32-75	74.7- 31.5- 74.7	100	43	71	71	41	53	12
351060019	75-40-75	74.7- 39.4- 74.7	100	65	71	71	41	51	12
351060020	75-50-75	74.7- 49.4- 74.7	100	65	71	71	41	48	12
351060021	75-63-75	74.7- 62.5- 74.7	100	101	71	71	41	44	12
351060022	90-63-90	89.7- 62.5- 89.7	120	120	83	83	50	55	6
351060023	90-75-90	89.7- 74.7- 89.7	120	120	83	83	50	53	6
351060024	110-63-110	109.7- 62.5-109.7	148	85	99	99	62	71	4
351060025	110-75-110	109.7- 74.7- 109.7	148	100	99	99	62	69	4
351060026	110-90-110	109.7- 89.7-109.7	148	120	99	99	62	66	4
