PP-R Tuyaux PN16 SDR 7.4

Specifications

Material: PP-RCT

Standard: DIN 8077/DIN 8078, DIN EN ISO 15874

Product series: SDR 7.4/S 3.2

Color: GREEN WITH LASER LABELING SYSTEM

Form Suuplied: 4 METER STRAIGHT LENGTH, ALSO IN COILS FOR SOME DIAMETERS

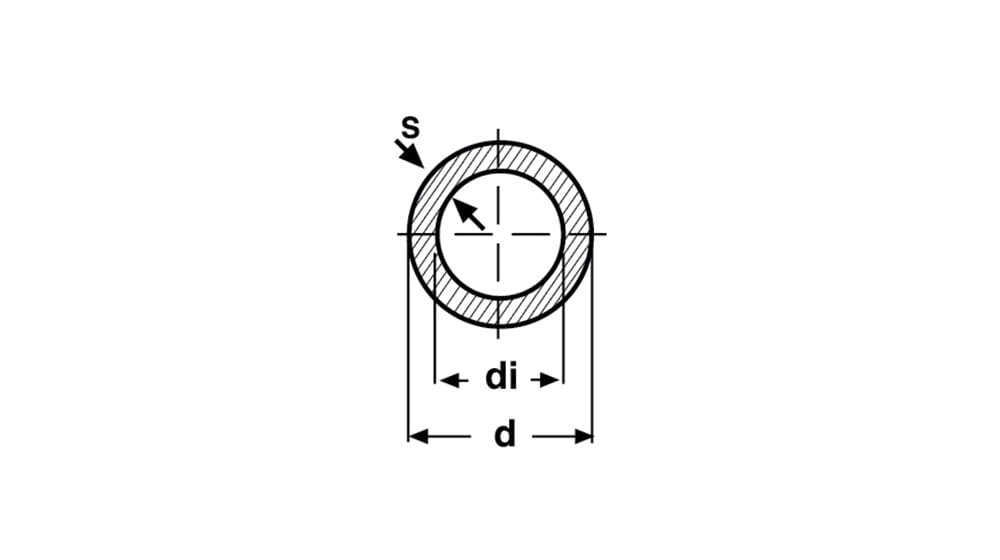

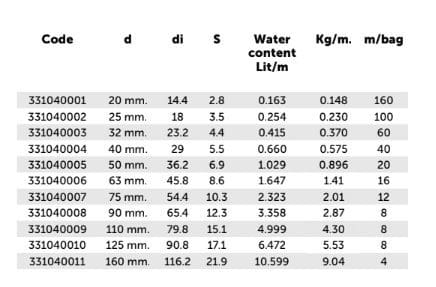

code d di s water content lit\m kg\m. m\bag
331040001 20mm. 14.4 2.8 0.163 0.148 160
331040002 25mm. 18 3.5 0.254 0.230 100
331040003 32mm. 23.2 4.4 0.415 0.370 60
331040004 40mm. 29 5.5 0.660 0.575 40
331040005 50mm. 36.2 6.9 1.029 0.896 20
331040006 63mm. 45.8 8.6 1.647 1.41 16
331040007 75mm. 45.4 10.3 2.323 2.01 12
331040008 90mm. 65.4 12.3 3.358 2.87 8
331040009 110mm. 79.8 15.1 4.999 4.30 8
331040010 125mm. 90.8 17.1 6.472 5.53 8
331040011 160mm. 116.2 21.9 10.599 9.04 4
