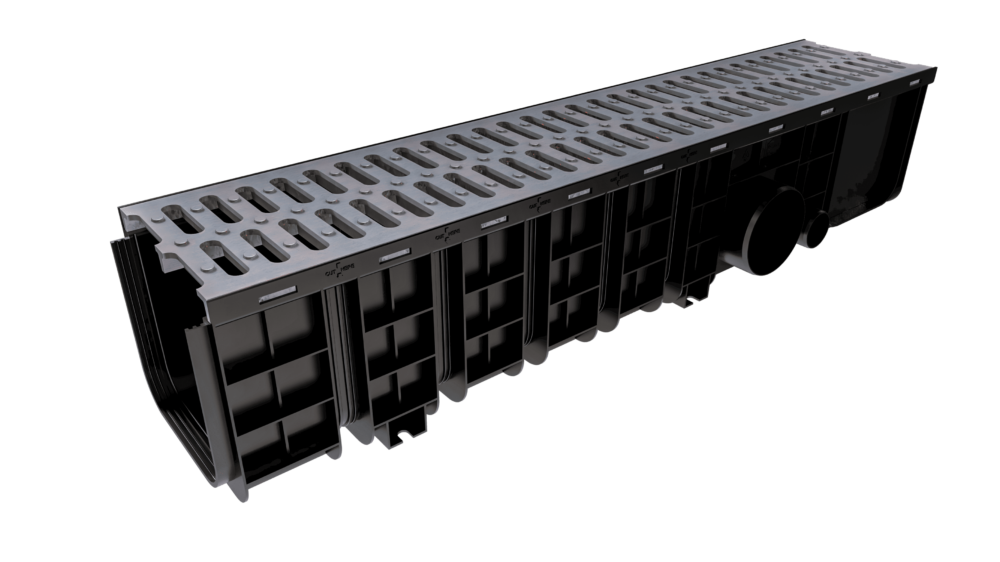

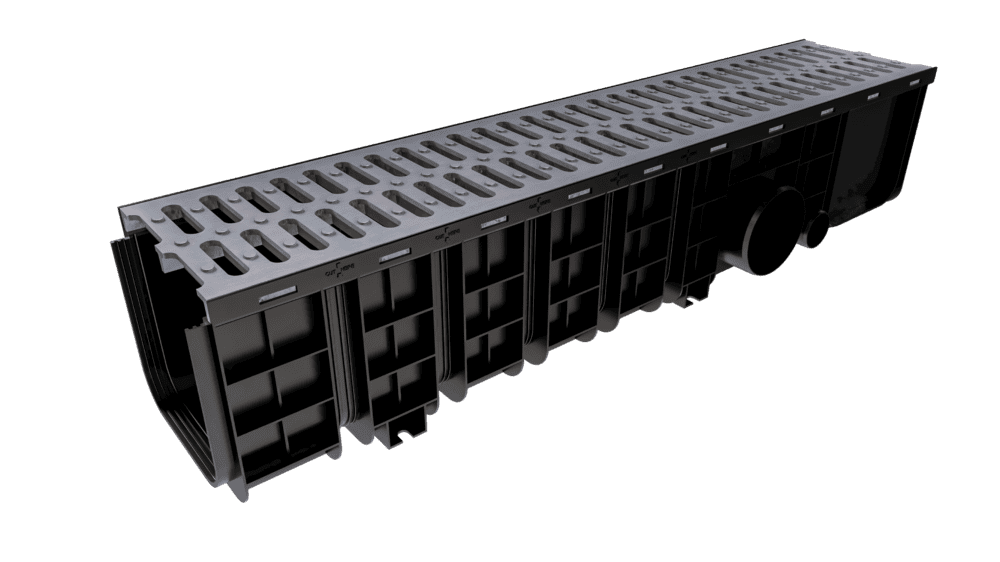

Drainage Water Channel with Cast Iron Cover

Specifications

Body

Material: made of polypropylene

Length: 1 meter

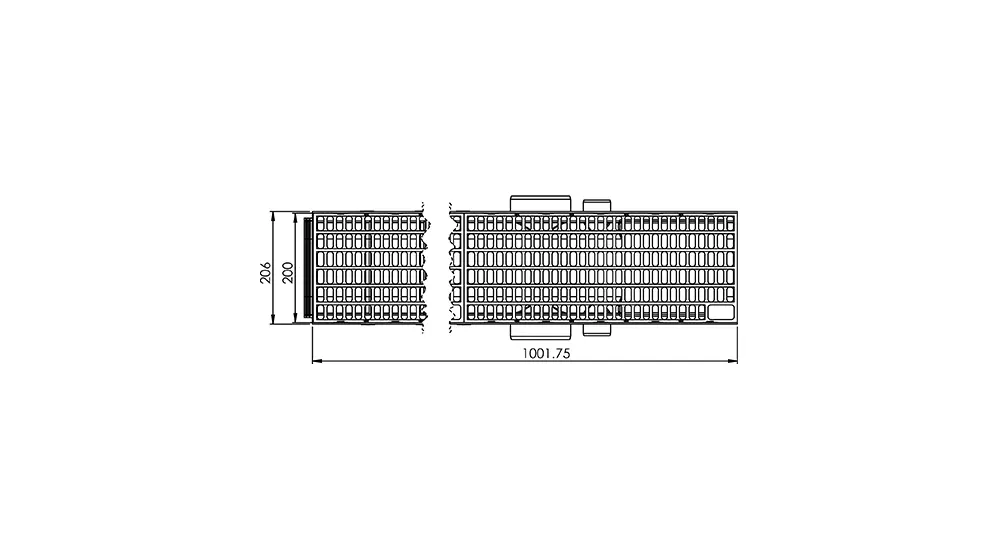

Width and Depth: 200*200mm

Lateral Outlets: Four optional side outlets (Ø 110 mm at each side & Ø 50mm at each side)

Vertical Outlet: One optional vertical outlet (Ø110mm or Ø 75mm).

Flow rate: 500 liters/min.

Cover

  • Load Class of B125
  •  2 Ductile Cast Iron covers (500mm each)
  • Cover weight 5.5 KG
  • has bossed dots on top to prevent slipping.
